Presswood Pallet Machine 1250 Tons Pressure

Presswood pallet machine 1200 tons pressure, H type, Four column and three beam

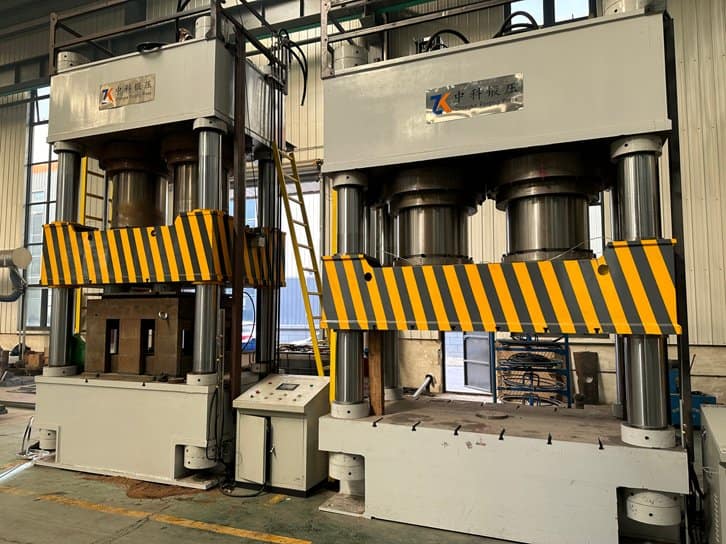

2000 tons presswood pallet molding machine
Four column and Three beam hydraulic press machine, H type molded pallet press machine
Presswood pallet machine 1200 tons pressure, H type, Four column and three beam

Description

The presswood pallet machine is a specialized machine that compresses wood chips and recycled materials to produce durable, lightweight pallets. The quality of the pallet is related to the pressure of the press, and higher pressure can produce better quality pallets.

Basic Information

Pressure: 1250 Tons
Operation: Automatic
Pallet: Presswood Pallet
Pallet Size: 1200x1000mm, 1200x800mm, 1100x1100mm,1200x1200mm
Pallet Pattern: Nine Feet Pallet
Dynamic Loading Weight: 1.5-2 tons
Static Loading Weight: 8-9 tons

Get a Quote

Share to :

1250 Tons Pressure Molded Pallets Machine Introduction

The 1250-ton molded presswood pallet press features a three-beam, four-column structure, designed for producing 1200x800mm and smaller-sized molded pallets. Its major components are produced using automated precision machining equipment, and robotic welding ensures high-quality assembly.
The structure is well-designed, and the entire machine weighs approximately 30 tons. It can operate in both automatic and manual modes, driven by a servo motor, offering low noise, smooth operation, and precise mold closing.

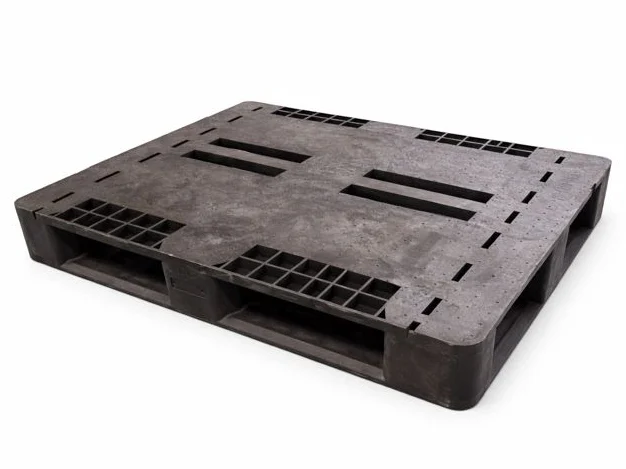

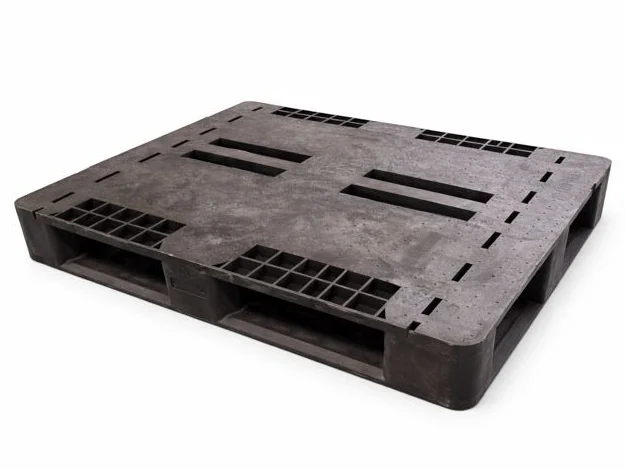

In addition to producing molded pallets, this press can be used for manufacturing plastic pallets, metal accessories, and other products by simply changing the molds.

Specifications:

Presswood Pallet Machine
Model: WM-1250
Suitable Raw Material: Wood Waste/Chilli Stalk/Miscanthus/Flax/Rice Husk
Pallet Size: 1000mm x 1200mm, 1200mm x 1200mm
Output Capacity: 10-15 Pcs/hour
Frame structure:  Three-beam and four-column
Material: Frame-steel Q235A; Column-steel 45#; Mould- steel 45#
Cylinder Type: Hydraulic
Pressure: 1250 tons
Slide stroke: 700mm
Max Opening Height: 1200 mm
Working Table: 1800×1400 mm
Mould: 1 up mold & 1 bottom mould
Logo engraving: Support
Machine Weight: 28 tons
Machine Dimension: L1900mm x W1500mm x H4200mm
Electronic Brand: Schneider
PLC Brand: OMRON
Servo Motor: PHASE (Italy)
Servo Motor Power: 55kW
Touch Screen Brand: WEINTEK/SIEMENS

Presswood Pallet Machine Details

The main components of the machine are processed using precision machining equipment, and robotic welding is employed for high-quality assembly. The servo motor is sourced from a well-known domestic brand, while the PLC is from Siemens. The human-machine interface uses a Weintek screen from Taiwan, and the sealing rings are from Japan’s NOC. Electronic components are supplied by Siemens and Schneider. The press is equipped with safety locks and light curtains to ensure the safety of the operators. Additionally, depending on customer requirements, we offer the option of air or water cooling systems for the hydraulic system, effectively ensuring its smooth operation. The entire machine is designed for continuous operation, boasting a long service life and low failure rates.

Products Can Be Made With This Machine

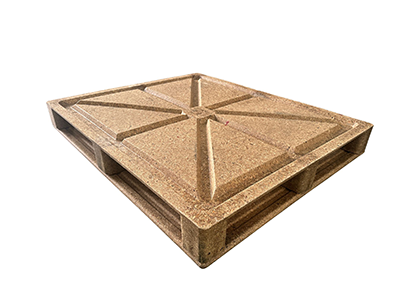

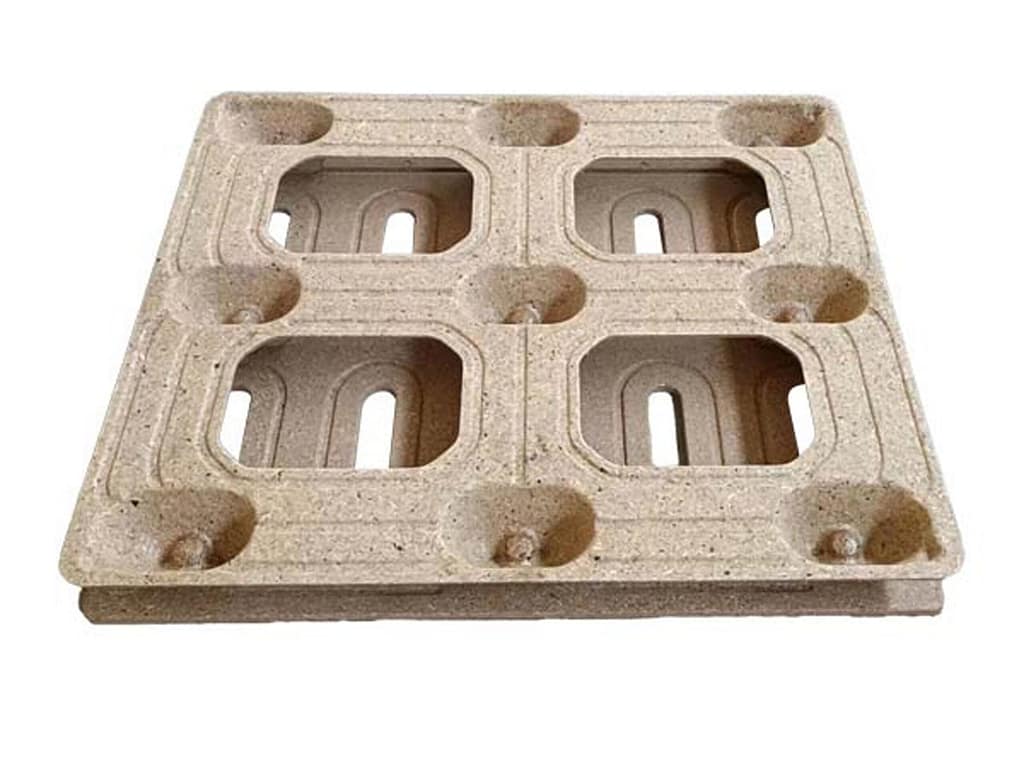

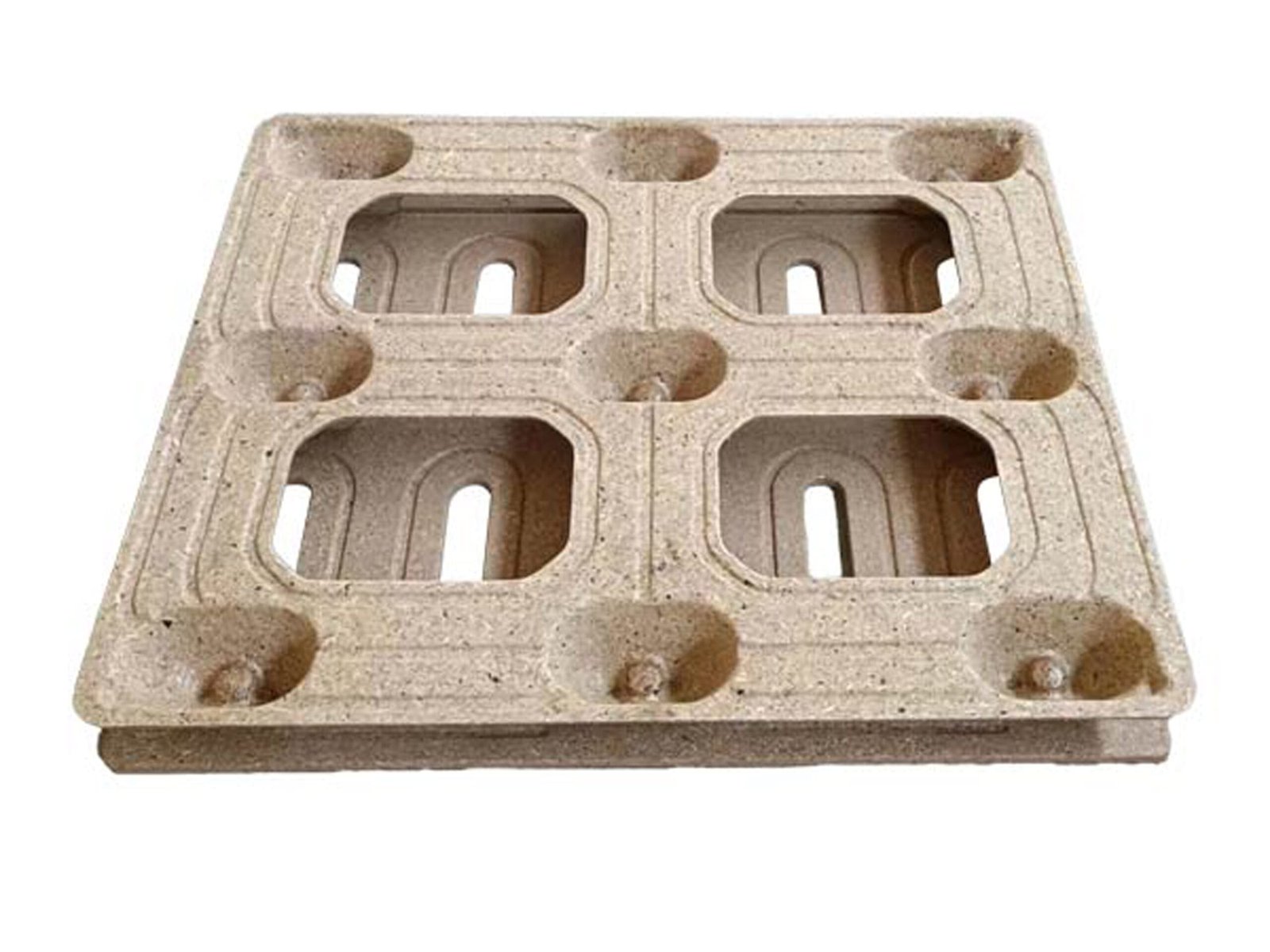

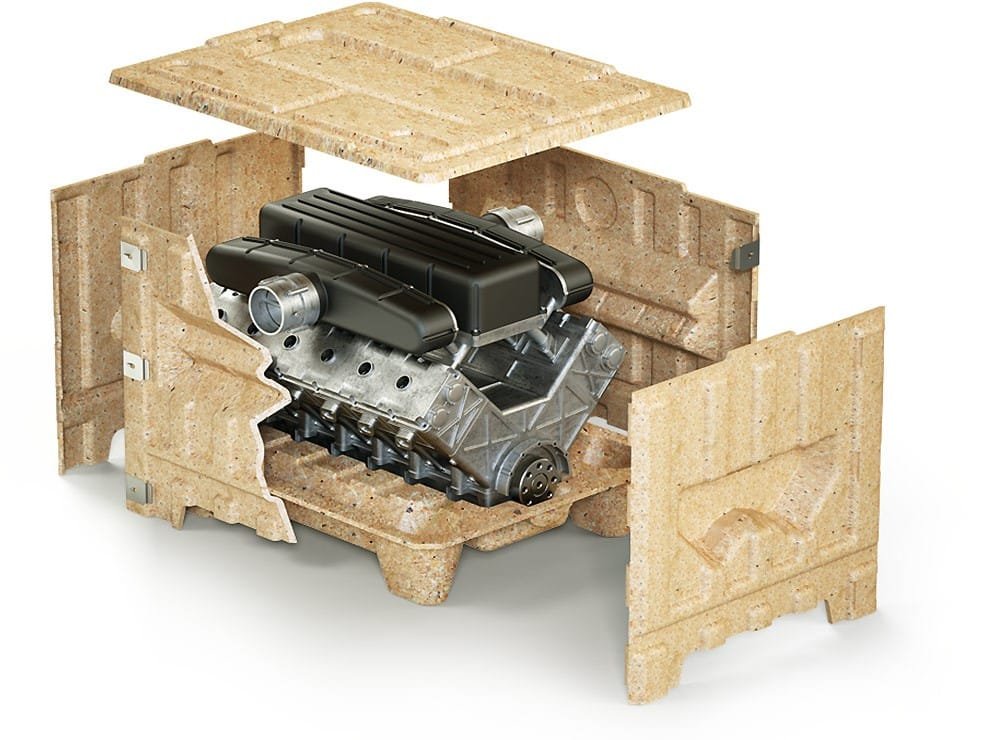

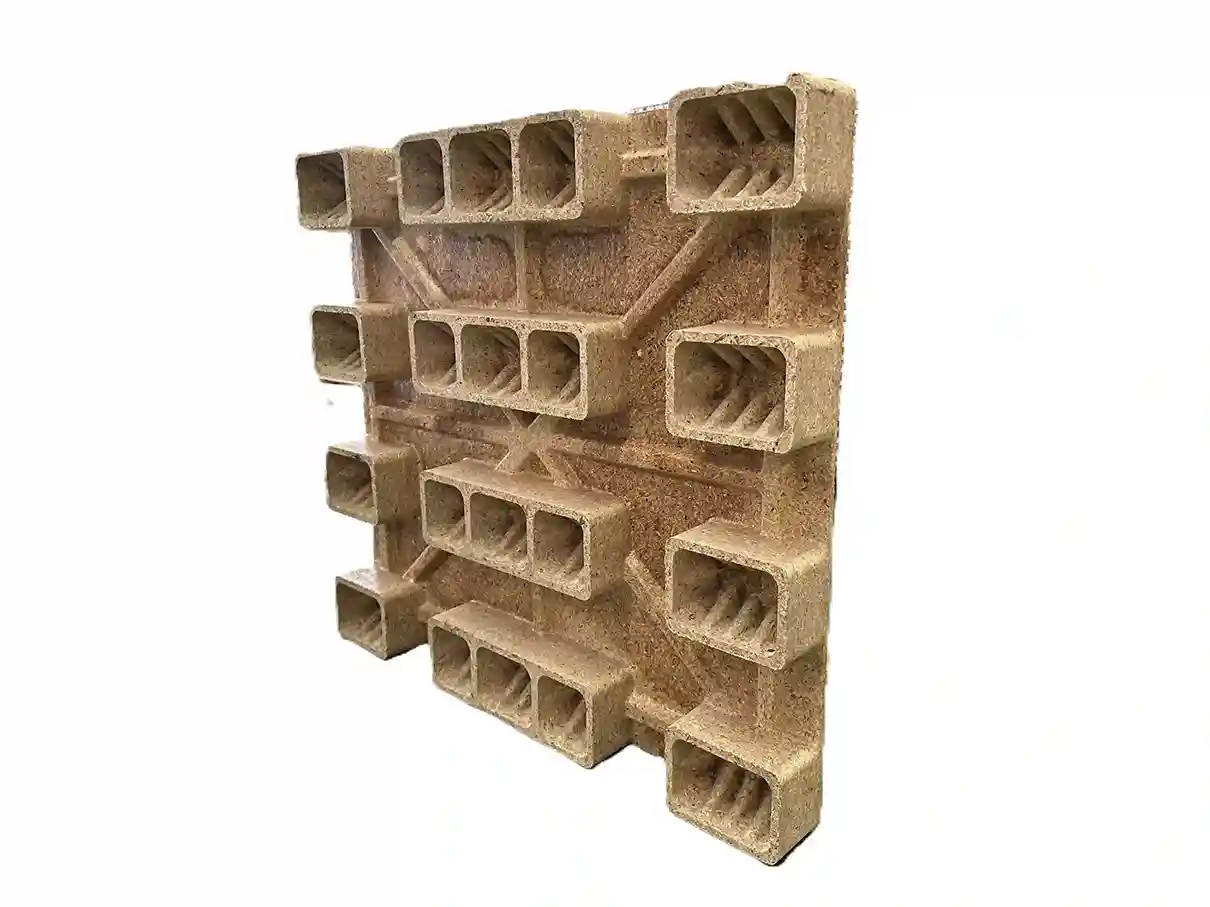

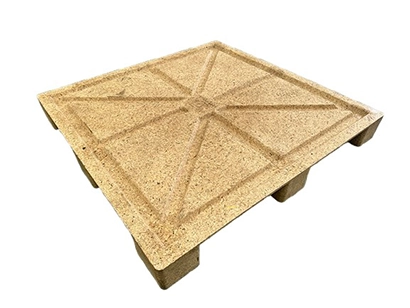

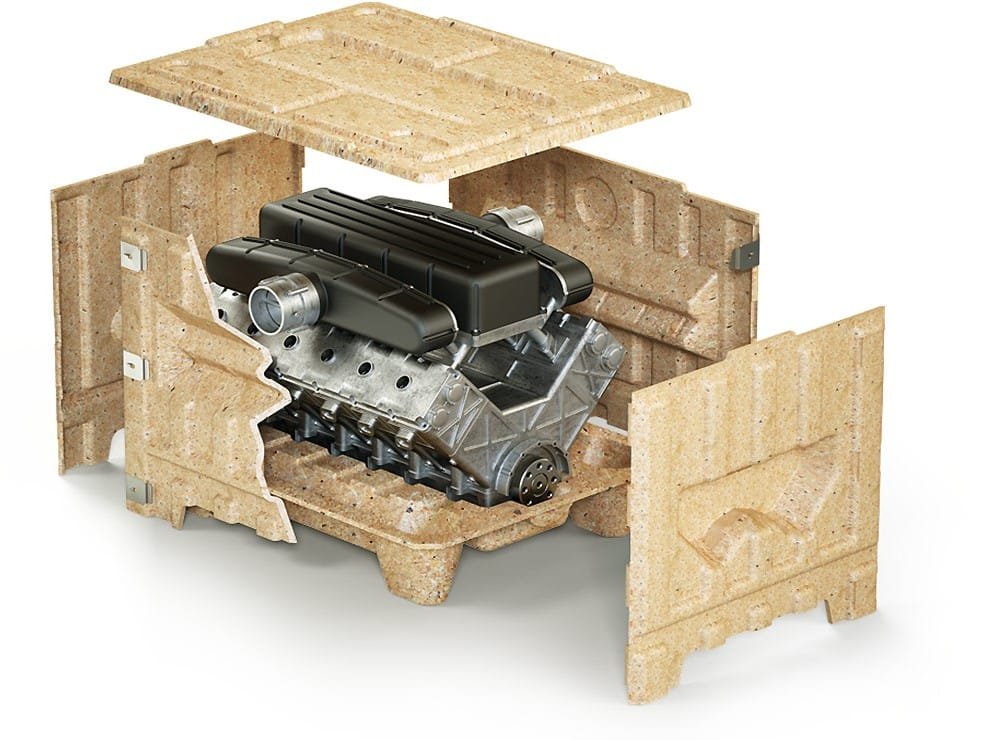

This machine can be used to produce Flat Surface Pallet, Nine Foot Pallet, Wood Case, Plugs…

Presswood Pallet Machine Production Video

Related products

Our Dedication to Eco-Friendly Practices

At PalletsBiz, we are committed to combining innovation with sustainability. We focus on manufacturing high-quality pallet molding machines while minimizing environmental impact. Each pallet produced represents our commitment to a greener Earth. Let’s work together to bring positive change to our planet.

Products Menu

Our Team

Contacts

  • Huaxian, Henan, China 450001
  • Mobile: +86 13253778360
  • Email: info@palletsbiz.com
Facebook X-twitter Youtube Linkedin

© Committed to a Sustainable Future

Privacy Policy

Contact My TEAM

My team will reply to you within 12 hours.

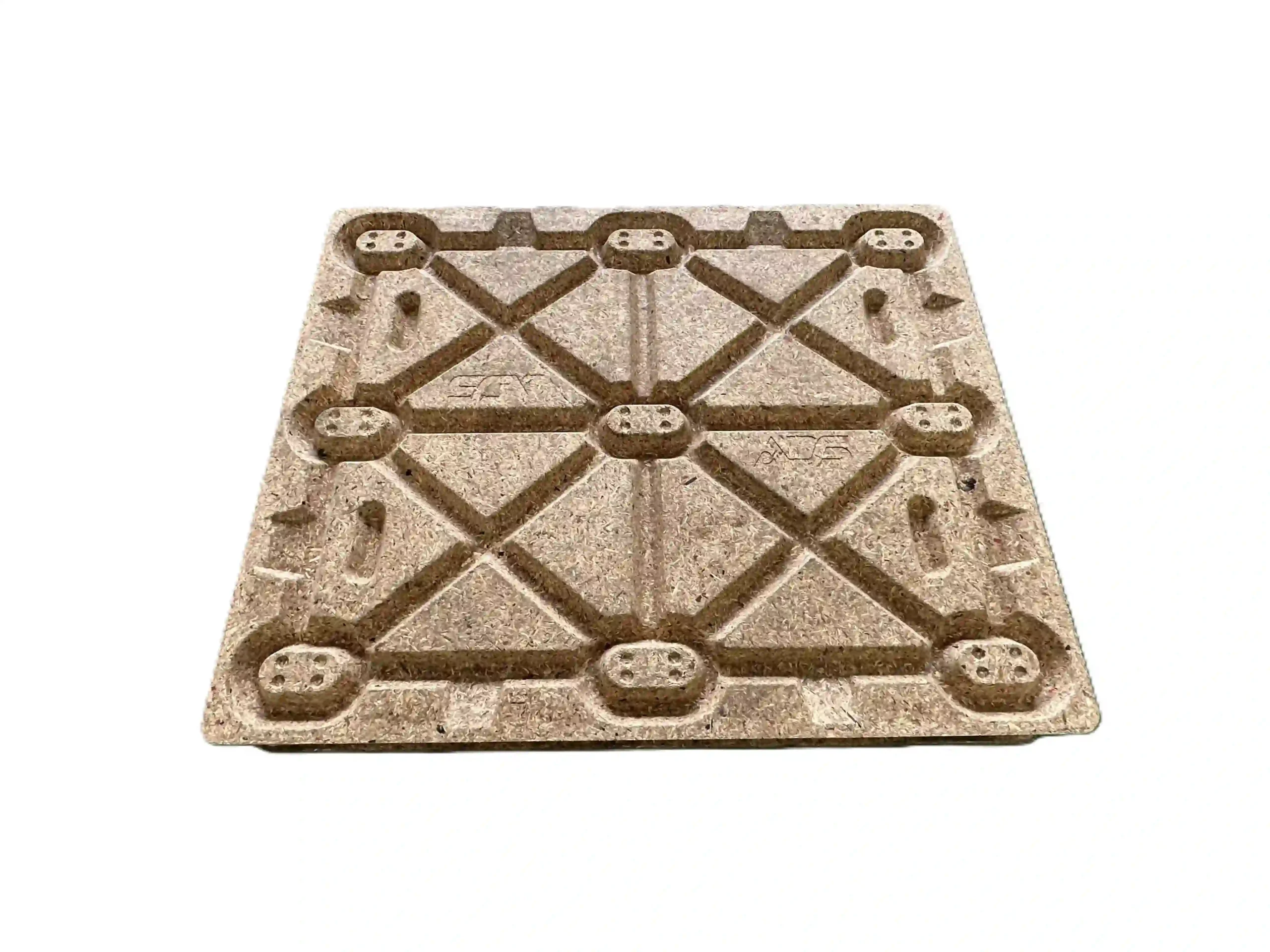

Nested Pallets

Pallet Specifications

Raw Material: Wood Waste, Wood Scrips, Wheat Straw, Rice Husk, Coconut Fiber, Flax, Palm Branches
Pallet Size: 600x800mm,1200x800mm, 1200x1000mm, 1100x1100mm, 1200x1200mm,
Dynamic Load: 500Kg-2500Kg,
Static Load: Max 13000 Kg
Glue Ratio: UF-15% or MDI 4-5%
4 Way & 2 Way Entry
Pallet Weight: 10Kg-25Kg

Description:

Molded presswood pallets are crafted from a combination of wood fiber and resin. Through a process of high heat and pressure molding, these pallets gain remarkable water—and mold-resistance properties. This makes them highly suitable for all domestic and export shipping needs.

Notably, these pallets are insect-free and fall under the category of “processed wood.” Their design is both practical and efficient. With a nestable and space-saving layout, they offer 2-way entry for hand jacks and 4-way entry, ensuring compatibility with forklifts, most conveyors, and select pallet dispensers. Easy to handle, they provide a reliable solution for your shipping and storage requirements.

Molded Wood Pallet Features & Benefits:

Cost-Effective Solution for Your Pallet Needs: Our Molded Presswood Pallets present a highly cost-effective alternative to traditional wooden and plastic pallets. They can be reused multiple times, significantly reducing the cost per shipment. This makes them an economical choice for businesses looking to optimize their shipping expenses.

Lightweight Yet Durable Construction: Weighing 60% less than conventional hardwood pallets, these pallets don’t sacrifice strength. Their durability allows for repeated use, and their affordability means they can be easily replaced if lost, making them perfect for return and reuse programs where pallet management can be challenging.

Nestable and Space-Saving Design: With a remarkable space-saving ratio of 4-1, our pallets offer substantial savings in both warehouse space and shipping costs. Their nestable design simplifies handling and storage, enhancing overall operational efficiency.

Cargo Protection and Safety Features: The one-piece design, devoid of nails or staples and featuring rounded corners, not only safeguards your products and packages from damage but also minimizes the risk of injuries to employees and customers during handling. This design aspect contributes to a safer and more reliable shipping process.

Export-Ready without Hassles: Unlike many pallets, our Molded Presswood Pallets are not subject to IPPC-ISPM 15 regulations as they are classified as “processed wood”. The high-heat manufacturing process eliminates the necessity for additional pest treatments for overseas shipping, ensuring seamless export to any country.

Environmentally Conscious and Sustainable: These pallets are produced using a high heat and pressure process that transforms damaged logs, wood waste, and other wood by-products into new, functional pallets, consuming less energy in the process.

Ideal Applications: Due to their absence of nails, insect pests, mold, and fungus, Molded Wood Pallets are the preferred choice for various industries.
