Glue for Presswood Pallet Production: Comparing UF, MUF, and MDI Adhesives

In the production of presswood pallets, glue plays a critical role in determining the final product’s strength, durability, and overall quality. Among the various adhesives available, Urea-Formaldehyde (UF), Melamine-Urea-Formaldehyde (MUF), and Methylene Diphenyl Diisocyanate (MDI) are the most commonly used. Understanding the properties of these glues and their impact on pallet molding machines and molded pallet quality is essential for optimizing production.

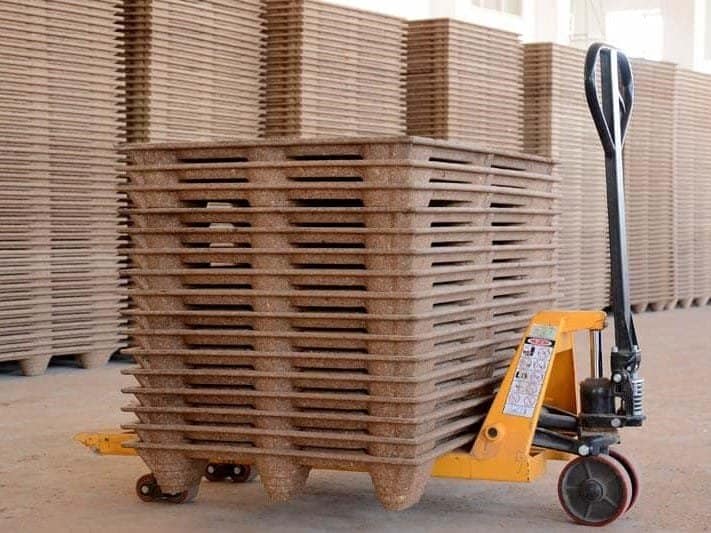

In the warehouse of molded pallets, there are a large number of pallets placed there, and one stack of molded pallets is piled on a small forklift truck.

Key Characteristics of UF, MUF, and MDI Adhesives

worlds_top_methylene_diphenyl_diisocyanate_mdi_manufacturers

Urea-Formaldehyde (UF)

UF is a thermosetting adhesive widely used for its low cost and high bond strength in dry conditions. However, its performance deteriorates under high humidity or wet conditions.

  • Advantages:
    • Cost-effective.
    • Fast curing time.
    • Suitable for high-speed production.
  • Disadvantages:
    • Limited water resistance.
    • Susceptible to formaldehyde emissions.

Melamine-Urea-Formaldehyde (MUF)

MUF is a modified version of UF with added melamine, which enhances its water resistance and durability.

  • Advantages:
    • Better moisture resistance compared to UF.
    • Improved mechanical properties.
    • Versatile for a range of applications.
  • Disadvantages:
    • Higher cost than UF.
    • Slower curing time compared to UF.

Methylene Diphenyl Diisocyanate (MDI)

MDI is an isocyanate-based adhesive known for its exceptional bonding strength and resistance to environmental factors.

  • Advantages:
    • Excellent moisture and heat resistance.
    • Low formaldehyde emissions.
    • Can bond with a wide variety of materials.
  • Disadvantages:
    • Higher cost compared to UF and MUF.
    • Requires careful handling due to health and safety concerns.

Impact on Presswood Pallet Production

UF Glue in Presswood Pallet Production

UF glue is often used when cost-effectiveness is the top priority. However, its limitations in water resistance make it less ideal for pallets intended for outdoor or humid environments.

  • Production Efficiency:
    • Curing time: 5–7 minutes, molding machines supplied by Palletsbiz, one machine can produce 180-240 pcs pallets per day.
    • Suitable for high-speed pallet molding machines.
  • Quality Impact:
    • Dry strength: 8–10 MPa.
    • Moisture resistance: Poor, limiting its use in wet conditions.

MUF Glue in Presswood Pallet Production

MUF glue strikes a balance between cost and performance, making it a popular choice for pallets requiring moderate moisture resistance.

  • Production Efficiency:
    • Curing time: 5–7 minutes.
    • Compatible with most pallet molding machines.
  • Quality Impact:
    • Dry strength: 10–12 MPa.
    • Moisture resistance: Moderate, suitable for semi-outdoor use.

MDI Glue in Presswood Pallet Production

MDI glue offers superior performance in demanding environments, making it the best choice for high-quality molded pallets.

  • Production Efficiency:
    • Curing time: 2–4 minutes PalletsBiz supplies the press machine with 1600 tons pressure, which can produce about 350-400 pcs per day.
    • Ideal for advanced pallet molding machines.
  • Quality Impact:
    • Dry strength: 15–20 MPa.
    • Moisture resistance: Excellent, suitable for outdoor use.

Comparative Data: Glue Performance and Pallet Quality

Glue TypeCuring Time (min)Dry Strength (MPa)Moisture ResistanceCostFormaldehyde Emissions
UF5 — 78–10PoorLowHigh
MUF5–710–12ModerateMediumMedium
MDI2–415–20ExcellentHighLow

Choosing the Right Glue for Presswood Pallets

The selection of glue depends on the specific requirements of the molded pallet application. UF glue is suitable for cost-sensitive projects, while MUF glue is ideal for moderate environmental challenges. MDI glue is the optimal choice for premium pallets requiring exceptional durability and moisture resistance.

Conclusion

Selecting the right adhesive is crucial for the efficient production and quality of molded pallets. While UF glue offers affordability, MUF provides balanced performance, and MDI ensures top-tier strength and durability. By understanding the characteristics and applications of these adhesives, manufacturers can optimize their pallet molding machines and achieve the desired product quality.

Contact us for more information about the Presswood pallet machine and glue, also we’d like to recommend to you the cooperated glue supplier.

Note:
1. MDI glue for presswood pallet, HS Code 3909500000
